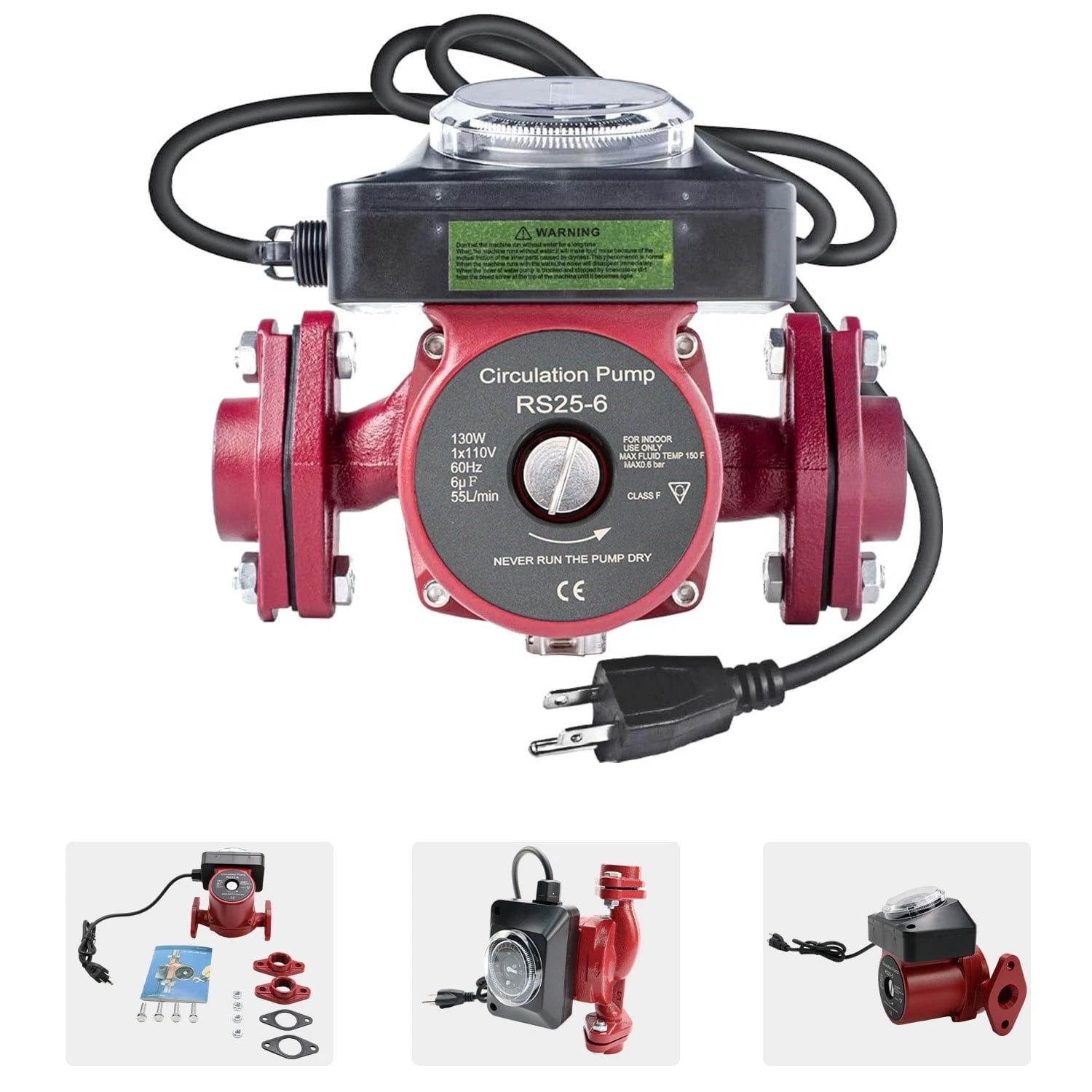

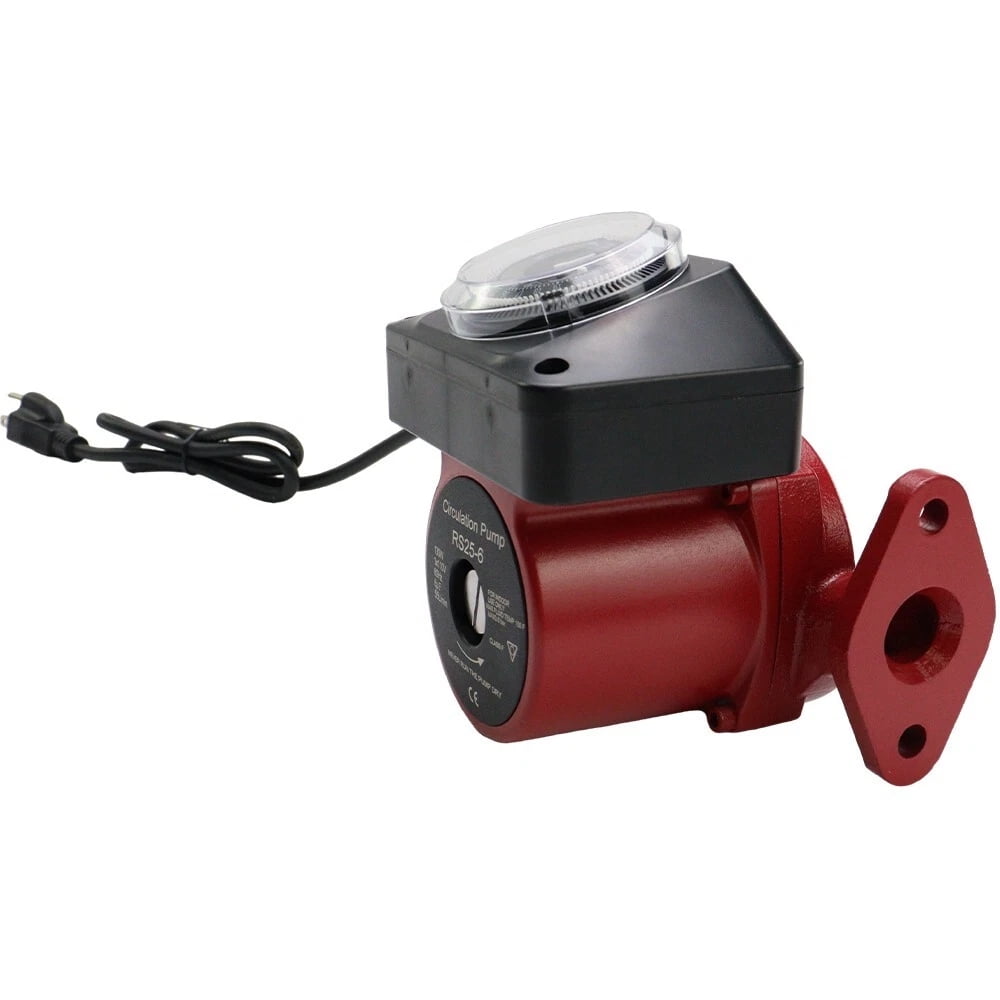

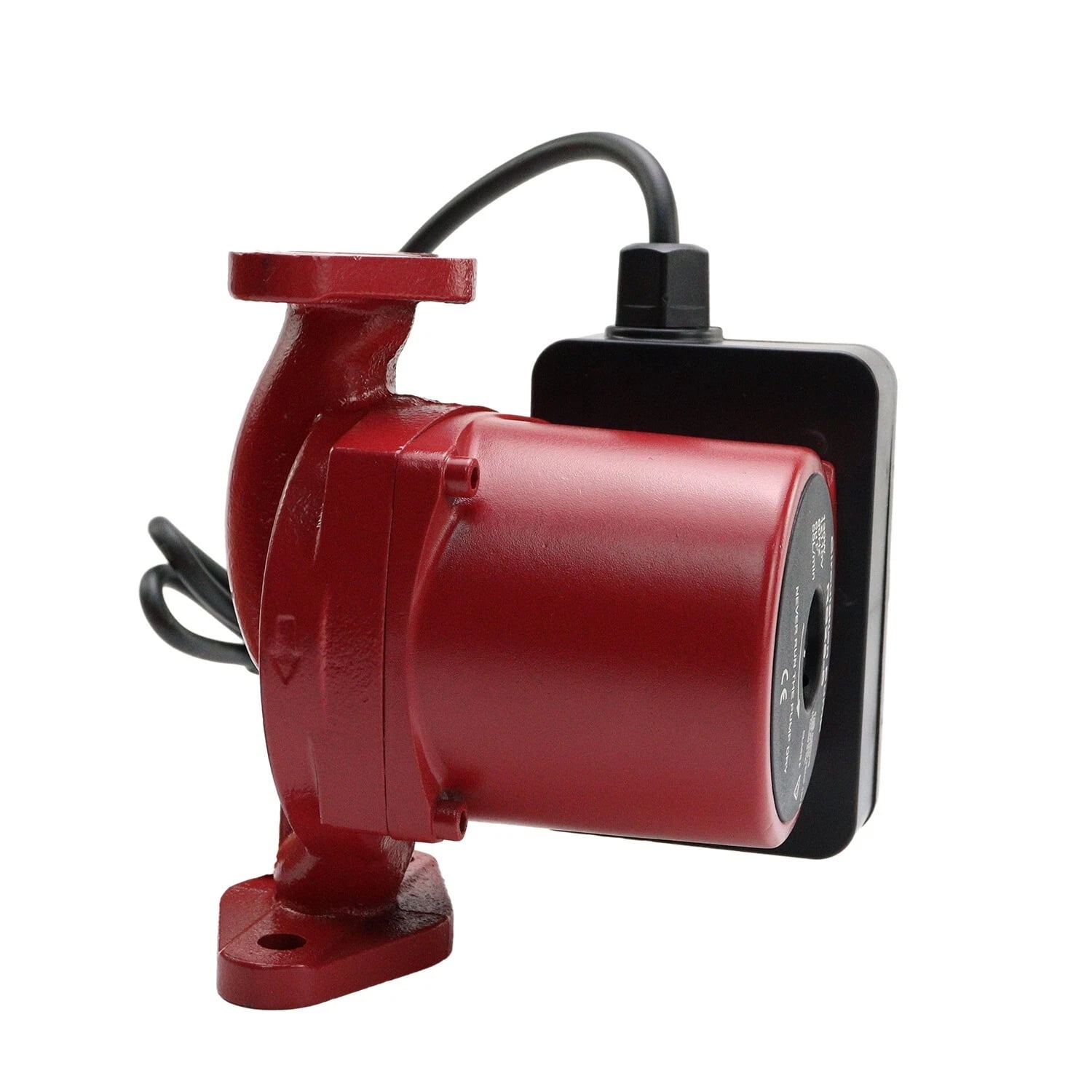

iMeshbean 110V Circulation Pump w/ Timer 130W 12.86 GPM Hot Water Recirculating Pump for Boiler
Product details
| Management number | 230915826 | Release Date | 2026/06/18 | List Price | US$38.80 | Model Number | 230915826 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

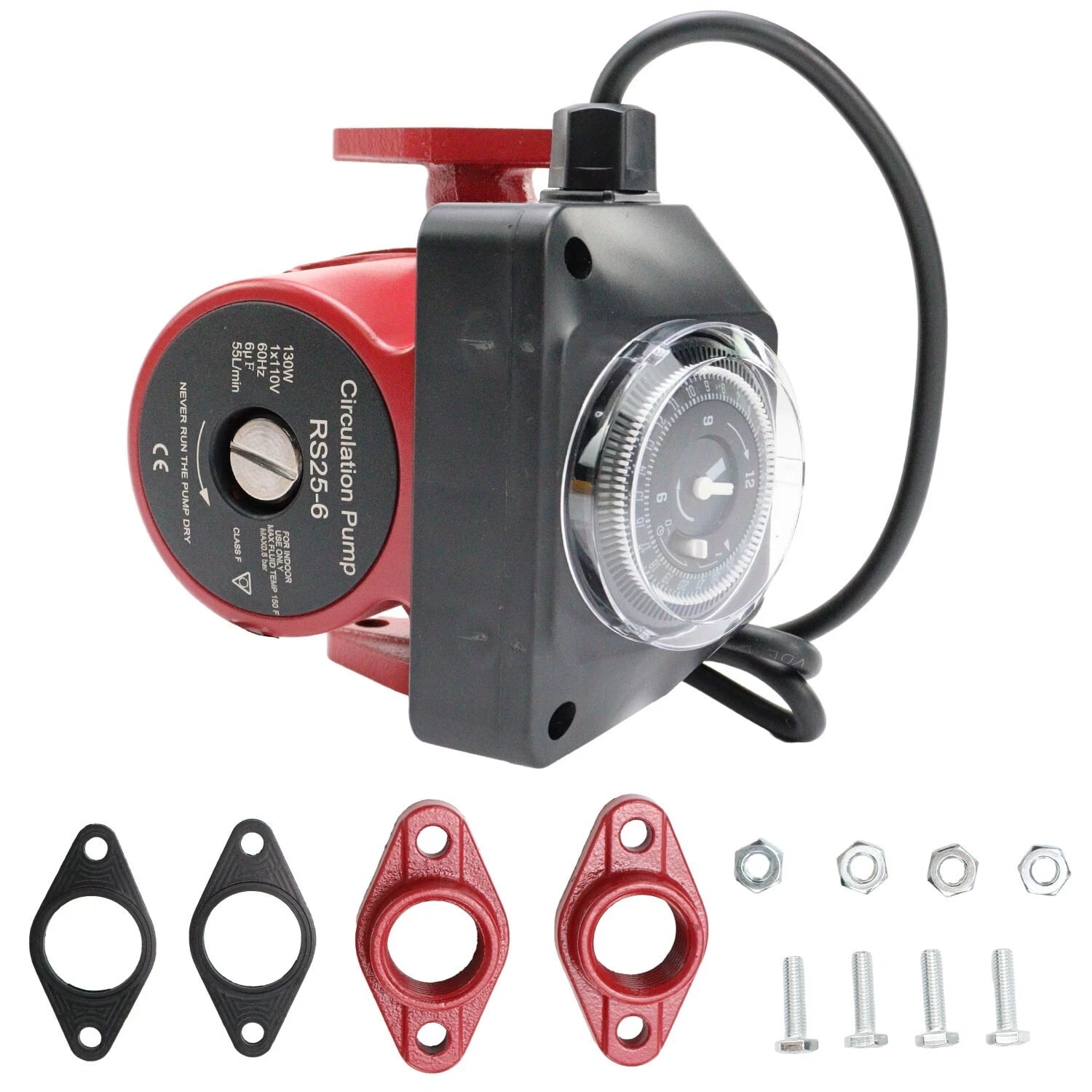

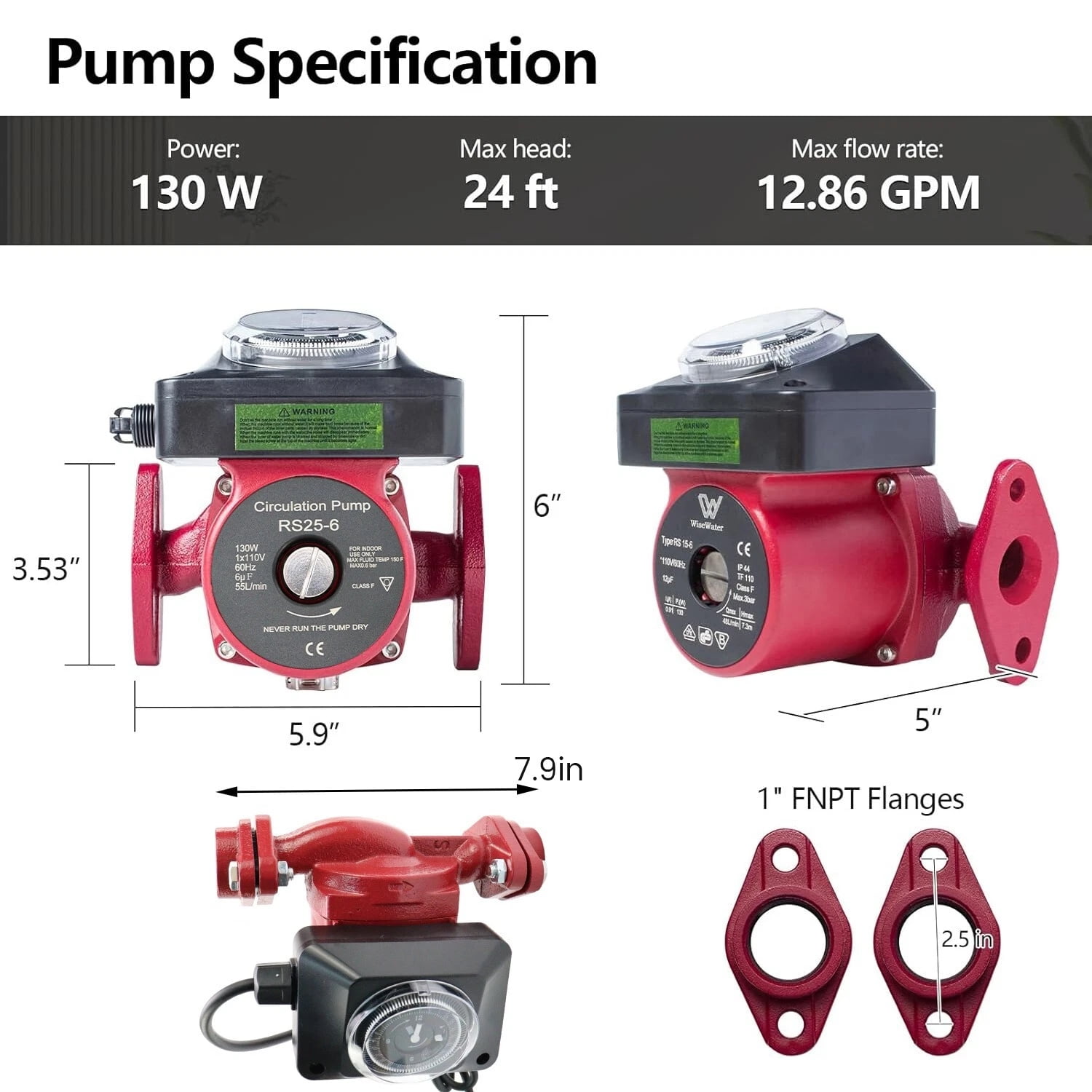

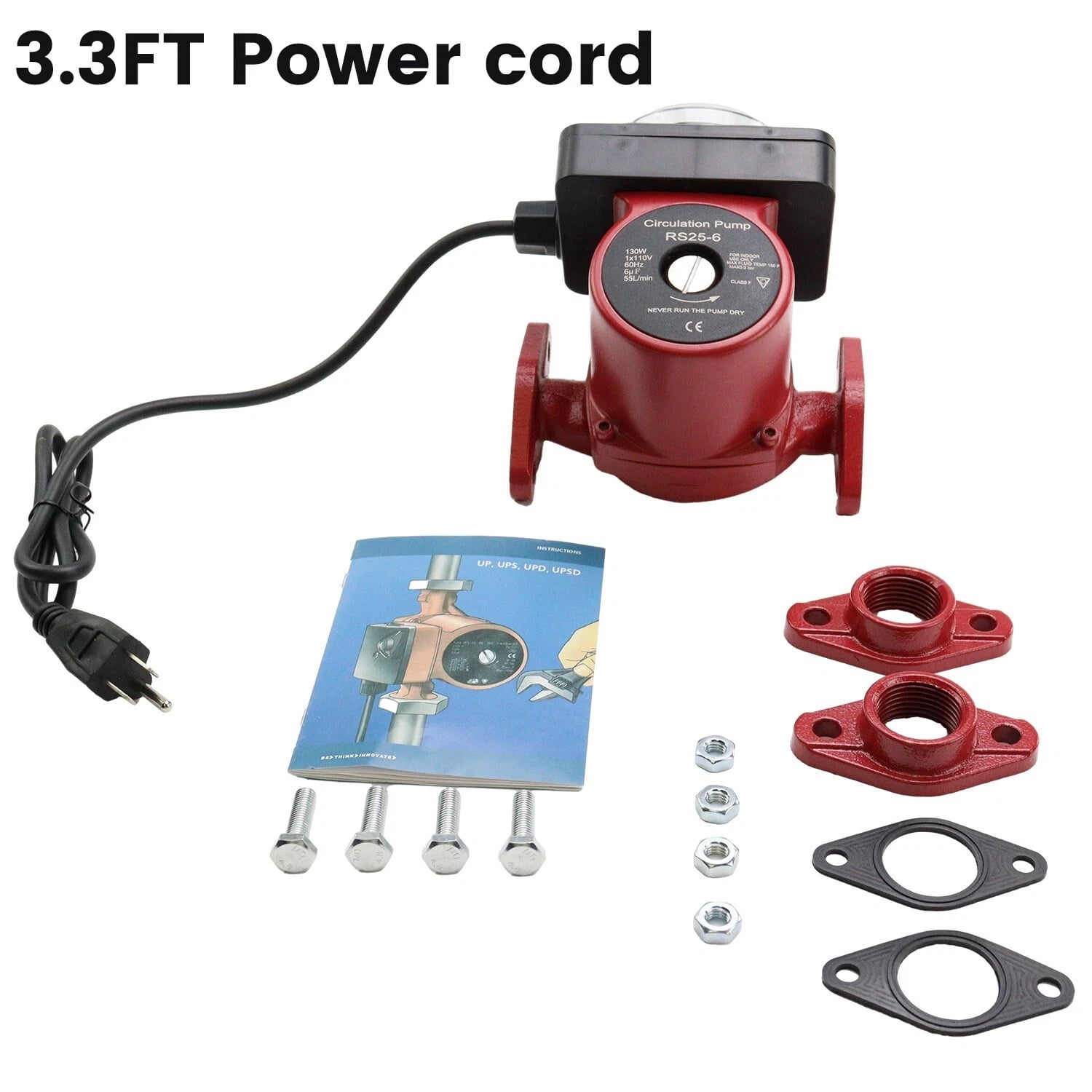

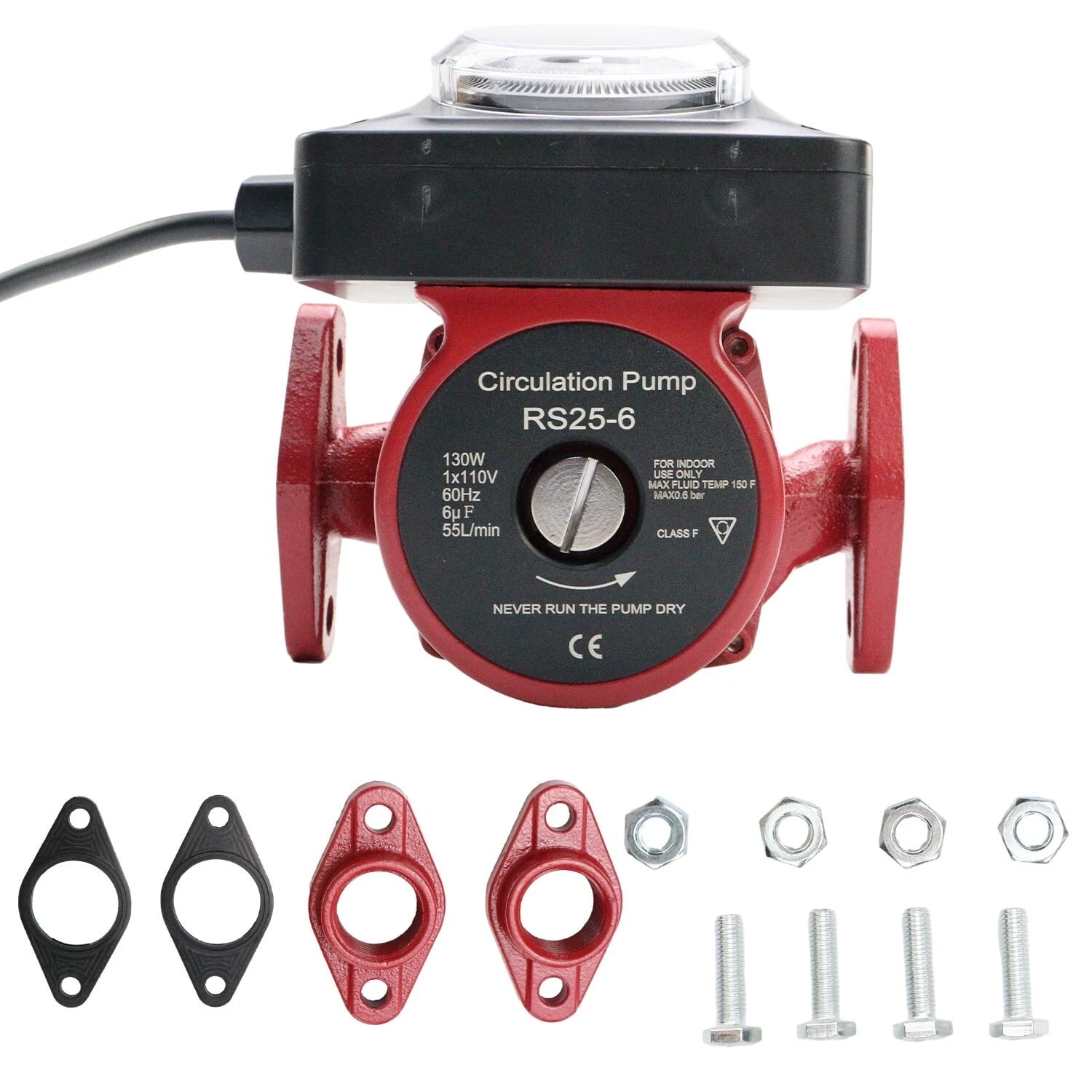

iMeshbean 110V Circulation Pump with Timer 130W 12.86 GPM Hot Water Recirculating Pump with 1'' FNPT Flange Timed Circulation Pump for Boiler, Solar Heater and Hydronic Radiant Heating<br> 【Specificaton】<br> Description: 115V Water Circulator Pump<br> Model: RS25-6<br> Brand: iMeshbean<br> Voltage: 110-120V<br> Hertz: 60Hz<br> Power: 130W<br> Adapter: 1'' FNPT flange connector<br> Max Flow: 12.86GPM<br> Max Head: 24FT<br> Maximum Working Pressure: 145PSI<br> Liquid temperature range: 0 - 100℃(0-212℉)<br> Phase: Single<br> Noise level: ≤60dB<br> Mounting Positions: Pump shaft in the horizontal plane<br> Materials: Cast iron<br> Inlet & Outlet: 1in<br> Ambient temperature not higher than: 40℃(104℉)<br> Motor: Protection class: IP44; Insulation class: F<br> Power cord: 1m/3.3ft w/US Plug<br><br> 【Package Included】<br> 1 x Circulating Pump<br> 2 x 1'' FNPT flange connectors<br> 2 x Gaskets(Orings)<br> 4 x Bolts<br> 4 x Nuts<br> 1 x Manual

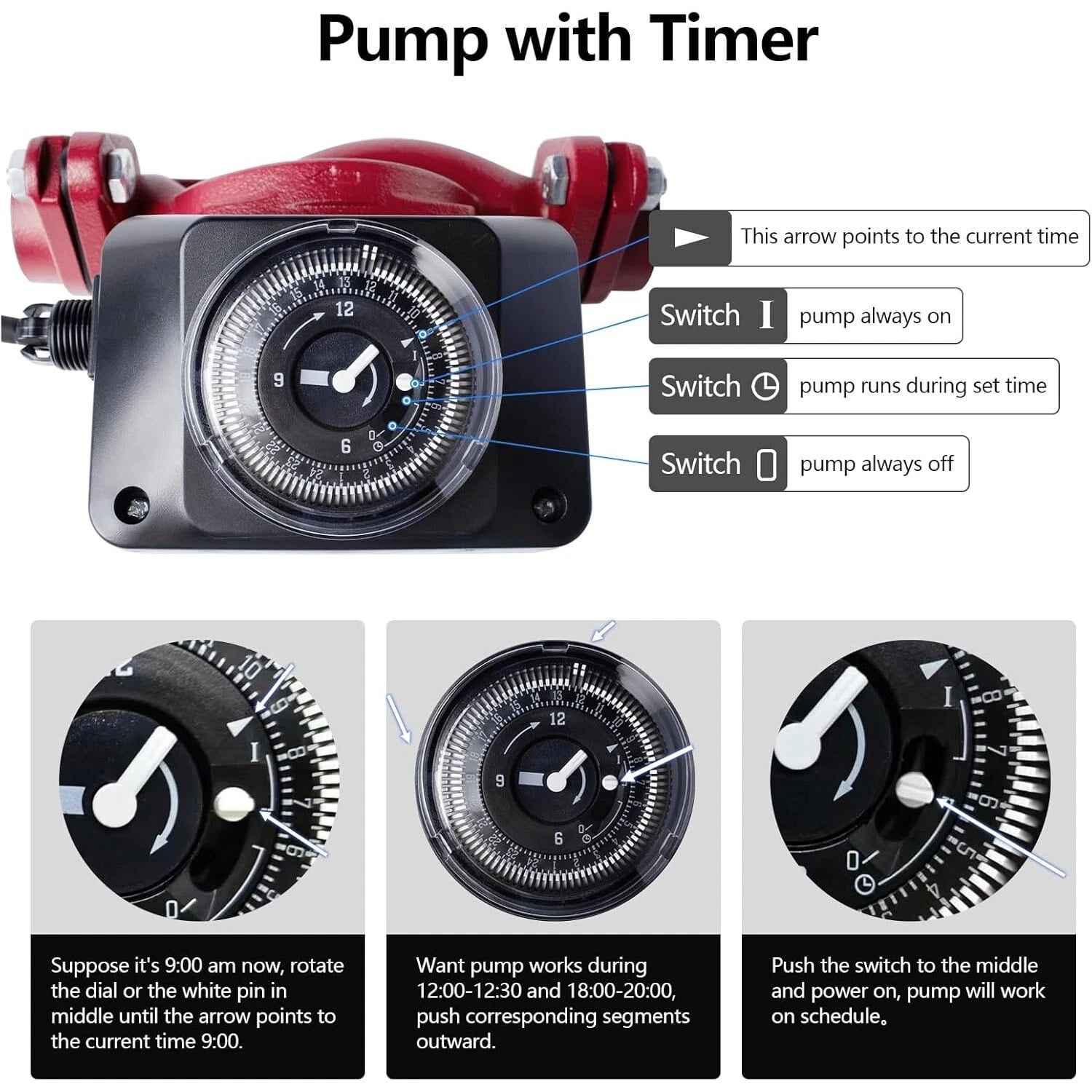

- 【Set Time Operation】: Our water pump with timer, you can set the running time of the circulating pump to supply hot water flexibly, effectively saving energy and money spent; high efficiency and quiet operation, the sound of the pump running as low as 30DB, to meet the demand for hot water at any time you enjoy while keeping the noise away from your family.
- 【Stable Hot Water Flow】: 110V circulation pump with tmer has 130W running power, max head 24ft, max flow rate 12.86 GPM, which can stably deliver hot water for hot water circulation system. Max medium temp: 230°F, max pressure: 145 psi.
- 【1'' Flange Connection】: The circulating pump adopts 1'' FNPT flange connector, with better sealing, not easy to leak, equipped with 2 flange gaskets and 4 bolts, easy to install and disassembly, convenient for cleaning and maintenance.

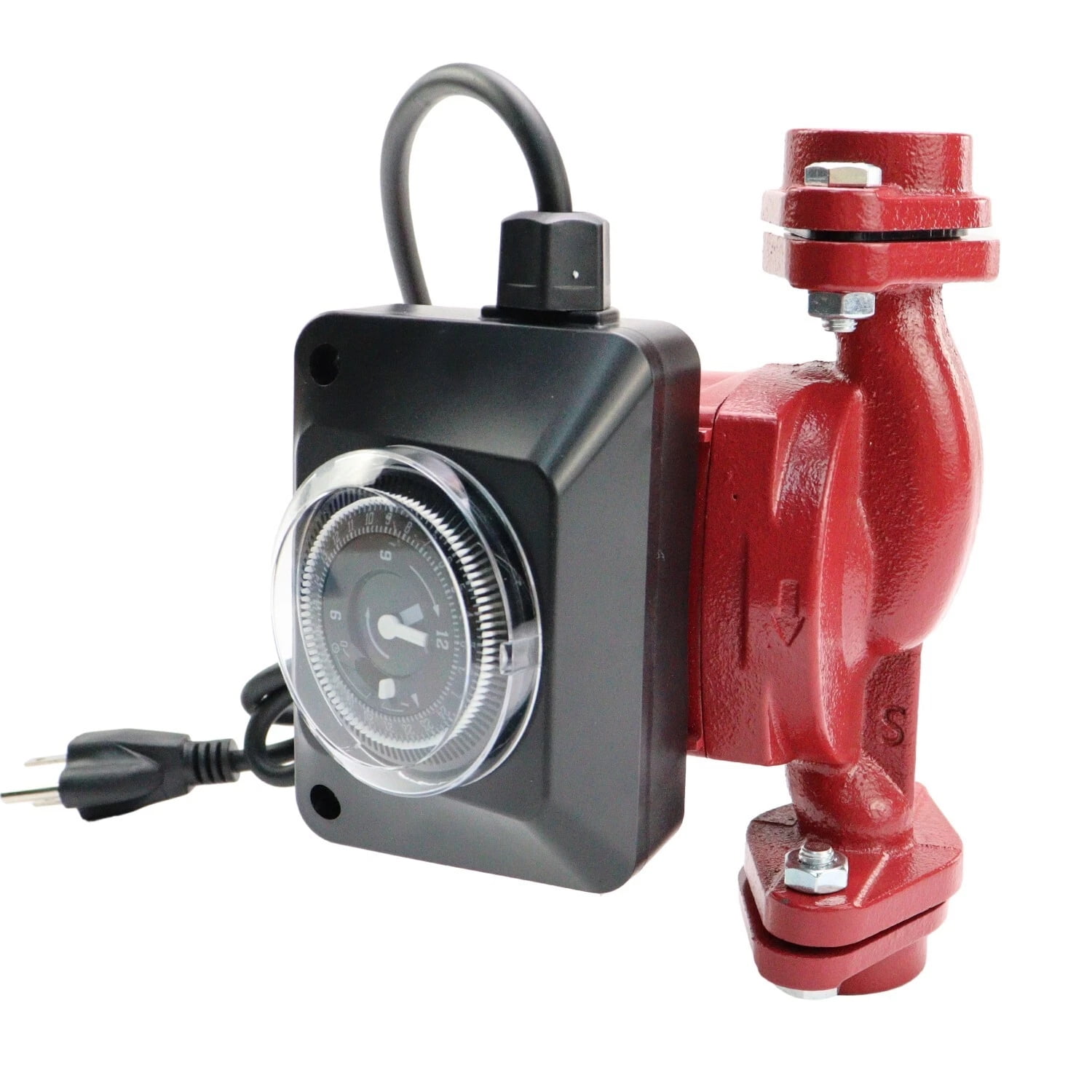

- 【Flexible Hot Water Supply】: Designed with built-in timer,the hot water recirculating pump allows you to set the running time on demand for flexible hot water supply, energy saving and power saving. When you arrive home, you can enjoy a hot shower immediately, no need to spend time to wait the pump start.

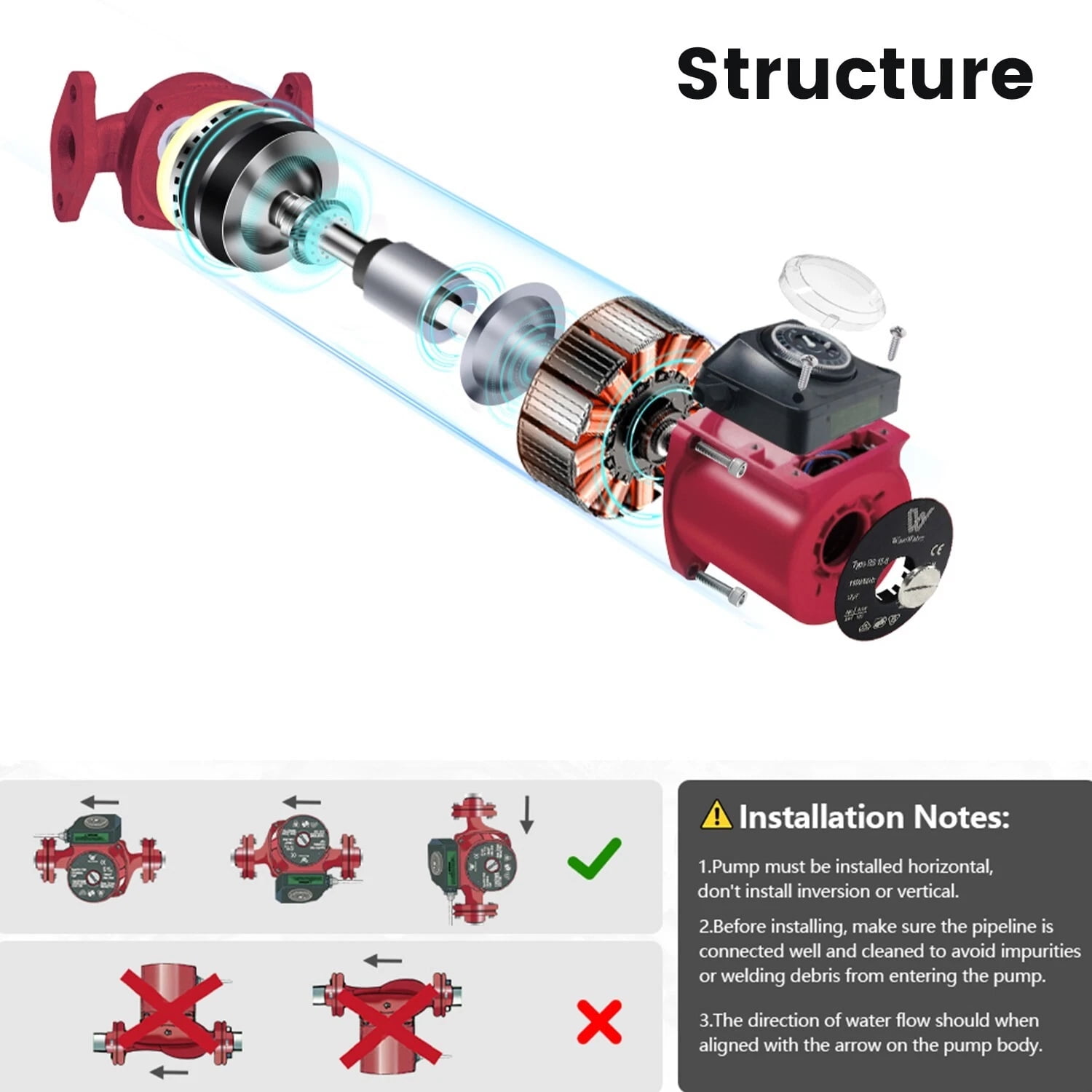

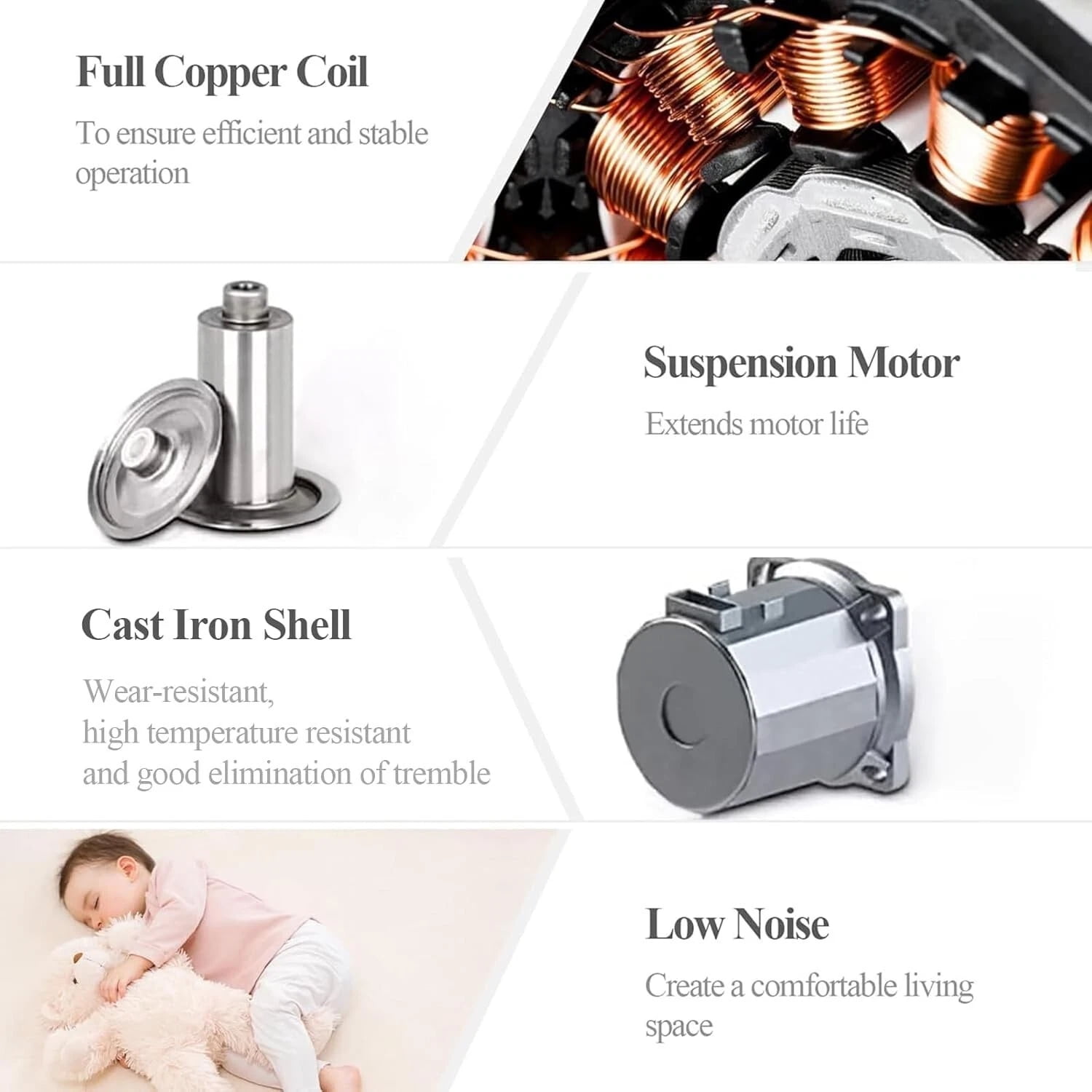

- 【Stable & Reliable Performance】: With ceramic bearings, powerful motor, PPO impeller and full copper coil, the flange pump has stable performance and low noise during operation, and the cast iron material ensures long lifespan.

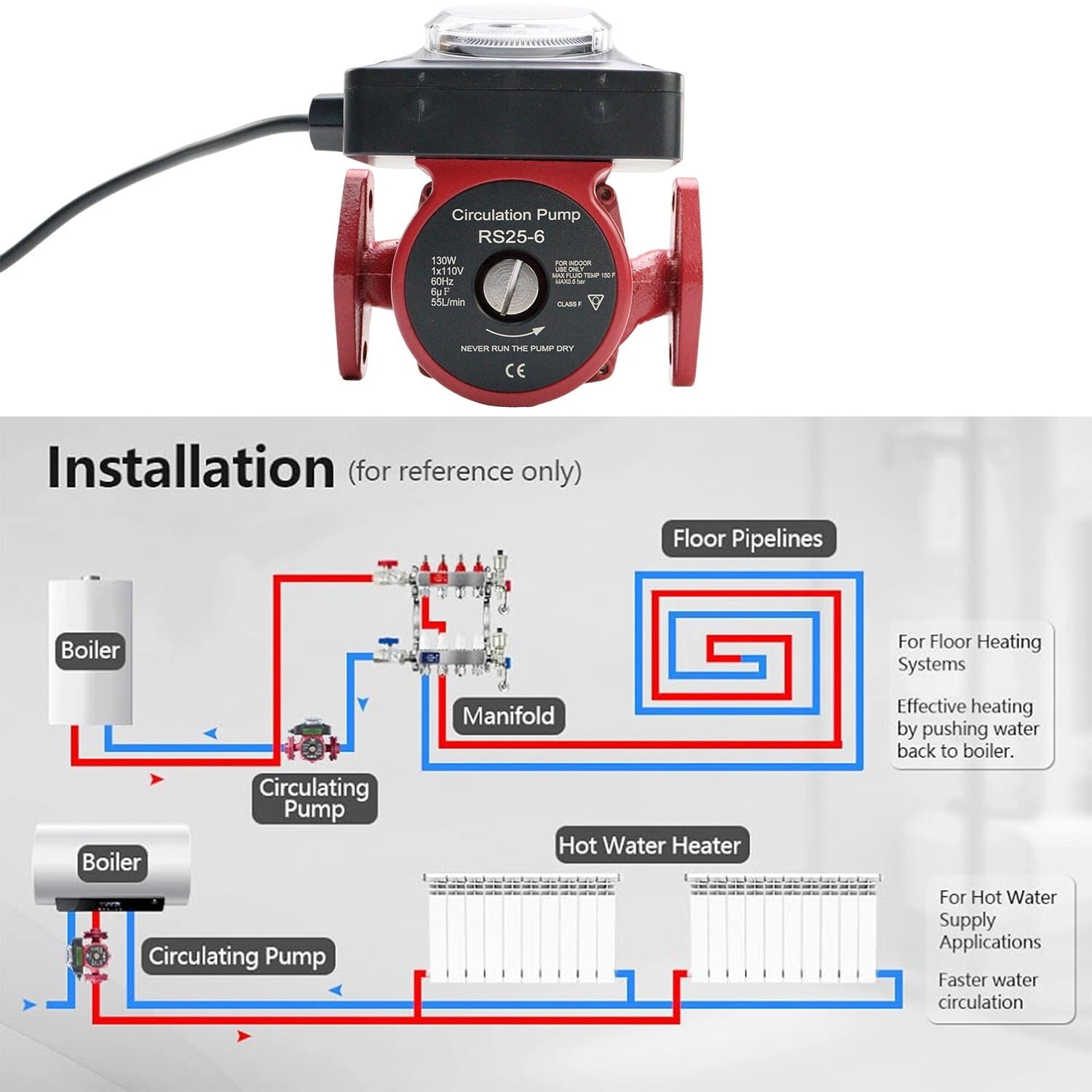

- 【Wide Range of Use】: The water booster pump is suitable for both residential and commercial use, and can be widely applied for home water pressurization, air conditioning, boilers, solar water heaters, snow melting, circulating heating, floor heating, central air-conditioning, heaters and other circulating radiant heating and water supply and drainage.
| Brand | Imeshbean |
|---|---|
| Gallons per minute | 12.86 GPM |
| Plumbing pump type | Water Pump |
| Model | PU23549 |
| Volts | 110 V |
| Watts | 130 W |
| Power type | Corded Electric |
| Features | Adjustable, Durable, Easy Clean, Easy Installation, Energy Efficient |
| Accessories | 1 x Circulating Pump, 2 x 1'' FNPT flange connectors, 2 x Gaskets(Orings), 4 x Bolts, 4 x Nuts, 1 x Manual |
| Decibel rating | 30 dB |
| Weight | 6.61 lb |
| Has nrtl listing certification | N |
| Pack quantity | 1 |
